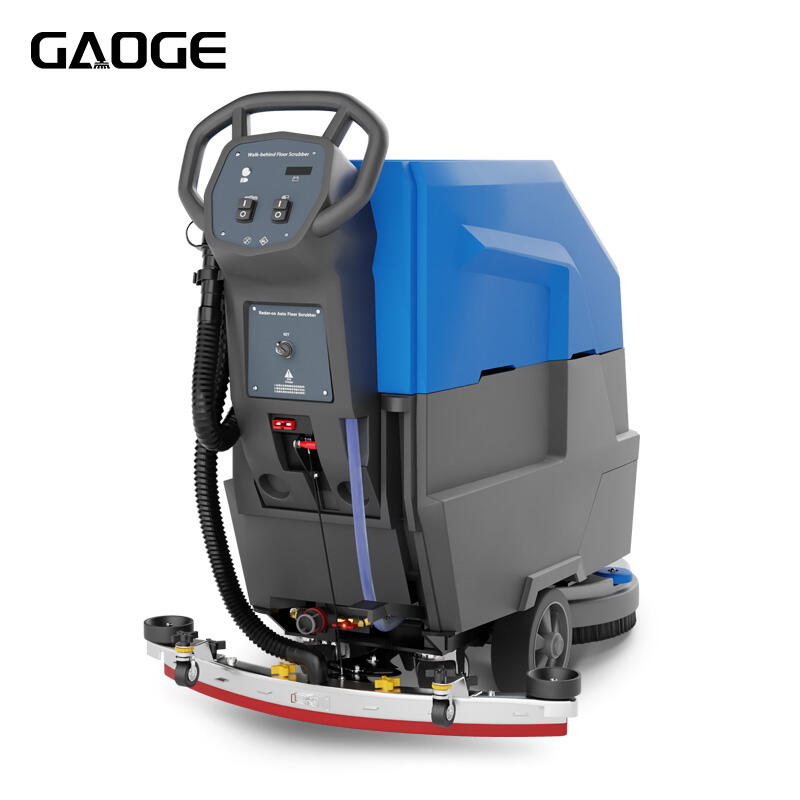

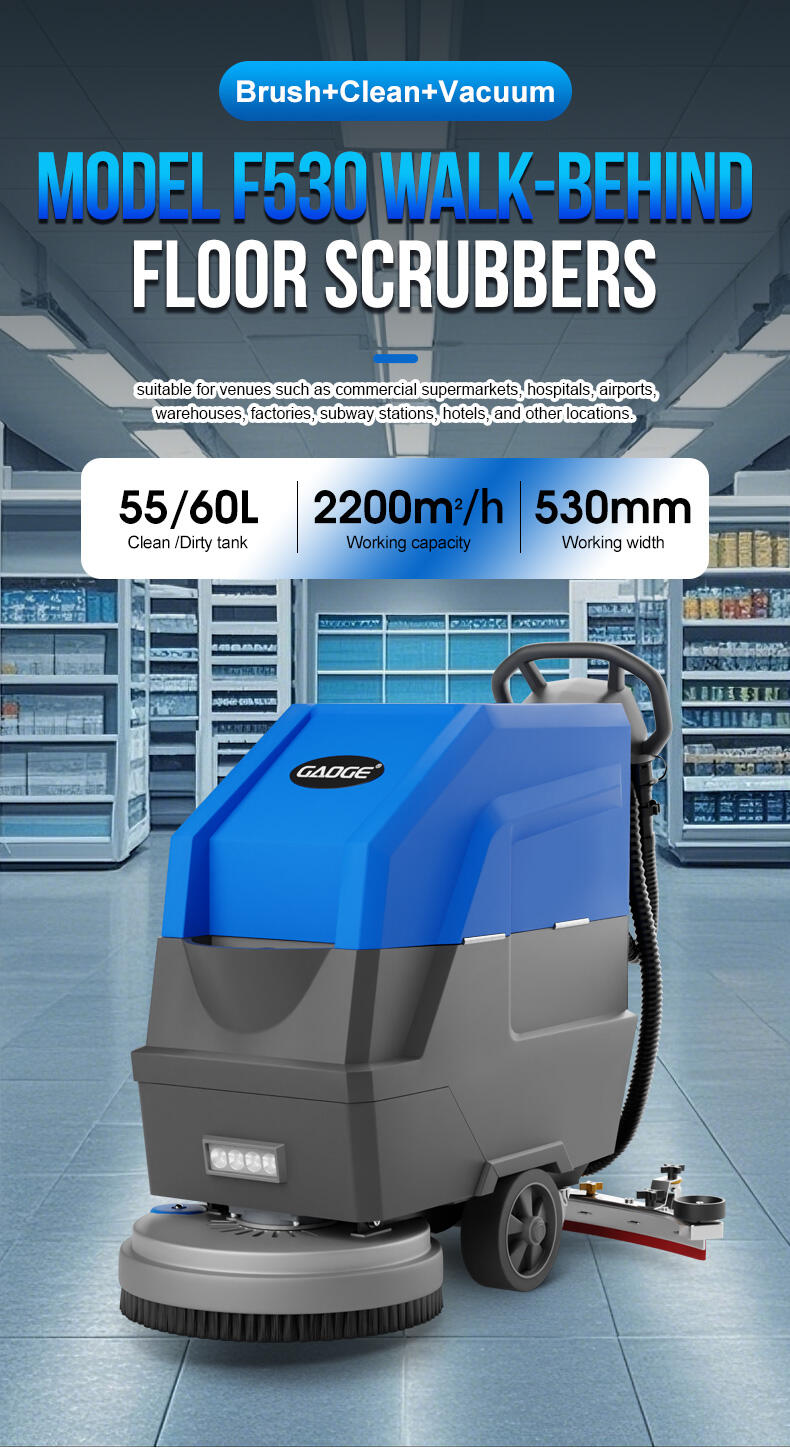

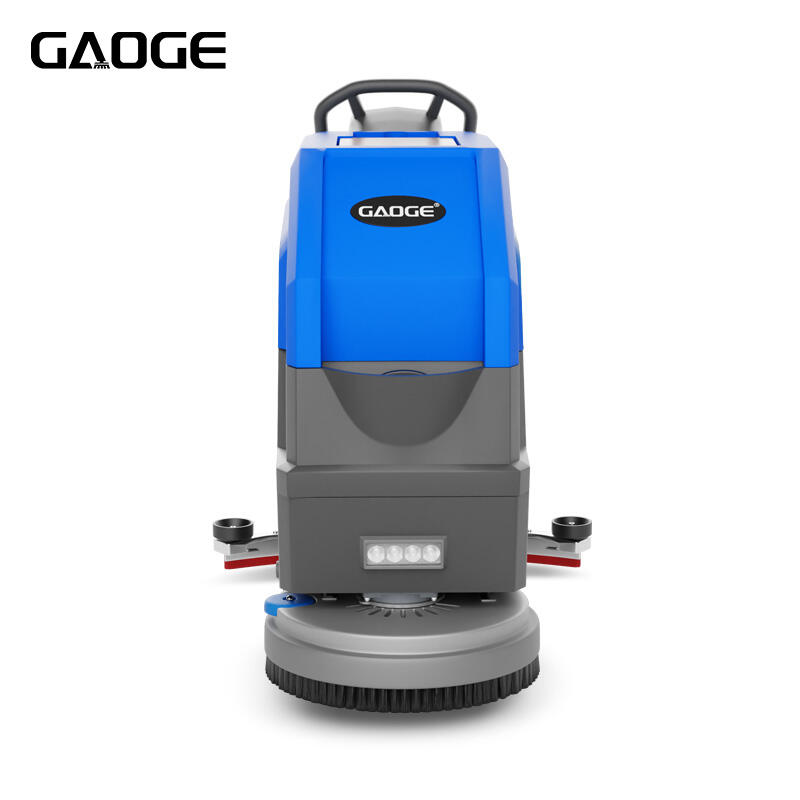

GAOGE F530 Walk Behind Floor Scrubber and Dryer Cleaning Machine With High Quality

Customization: Available

Quality warranty: 12 Months

Transportation:Support various logistics modes, including sea freight, land transport, and express delivery,etc.

After-sales service:Technical support,provide spare parts.

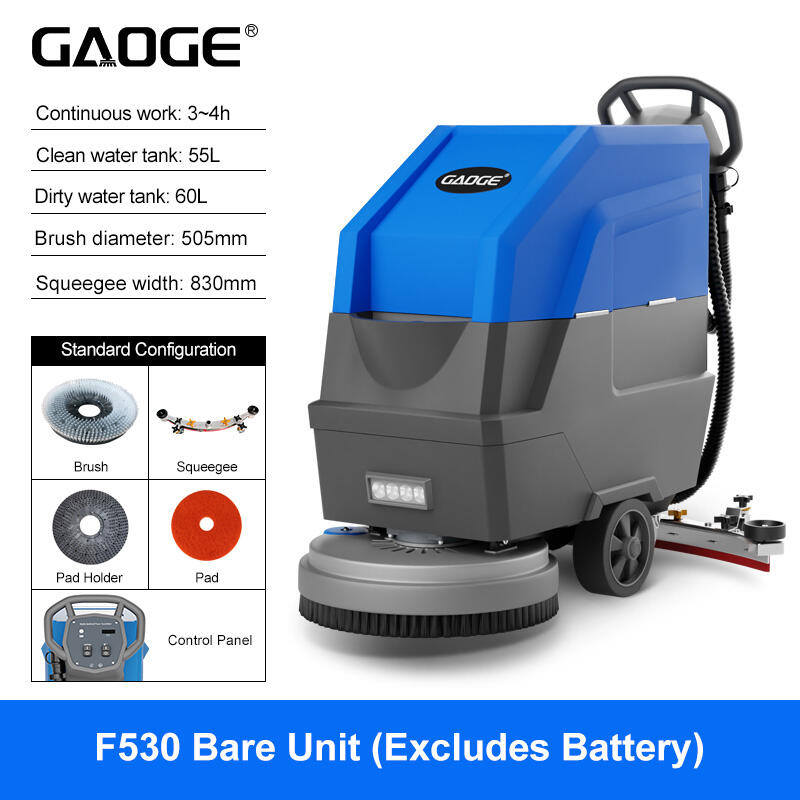

Each unit comes with a standard set of accessories:1 pcs battery,1 pcs charger,1 pcs squeegee blade,1 pcs brush disc or 1 pcs pad and padholder.

Note: Bare Unit (Battery and Charger Not Included)

Brand:
GAOGE
Appurtenance:
Walk-Behind:
Parameter

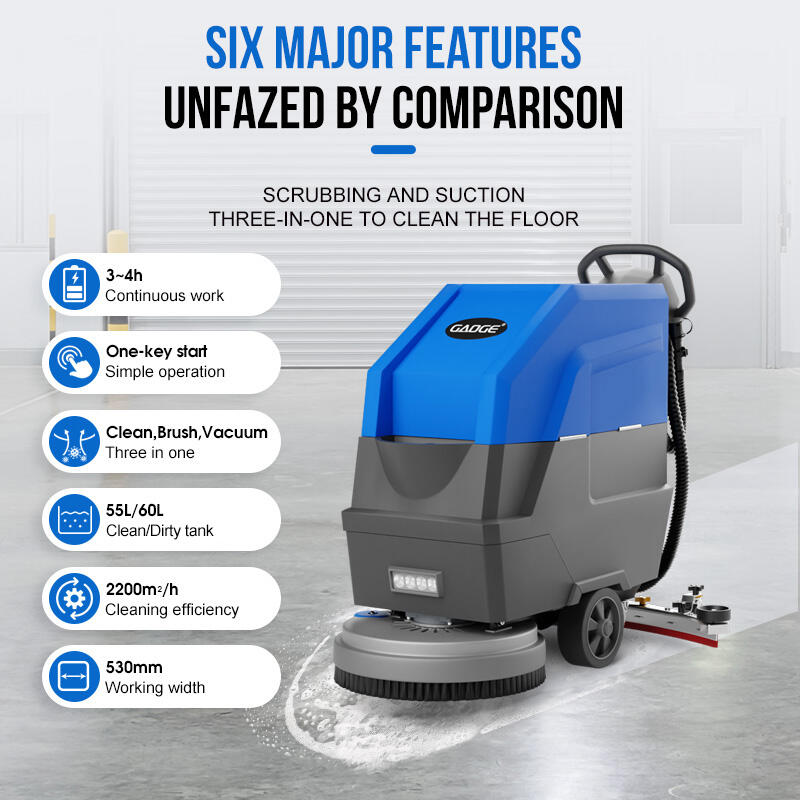

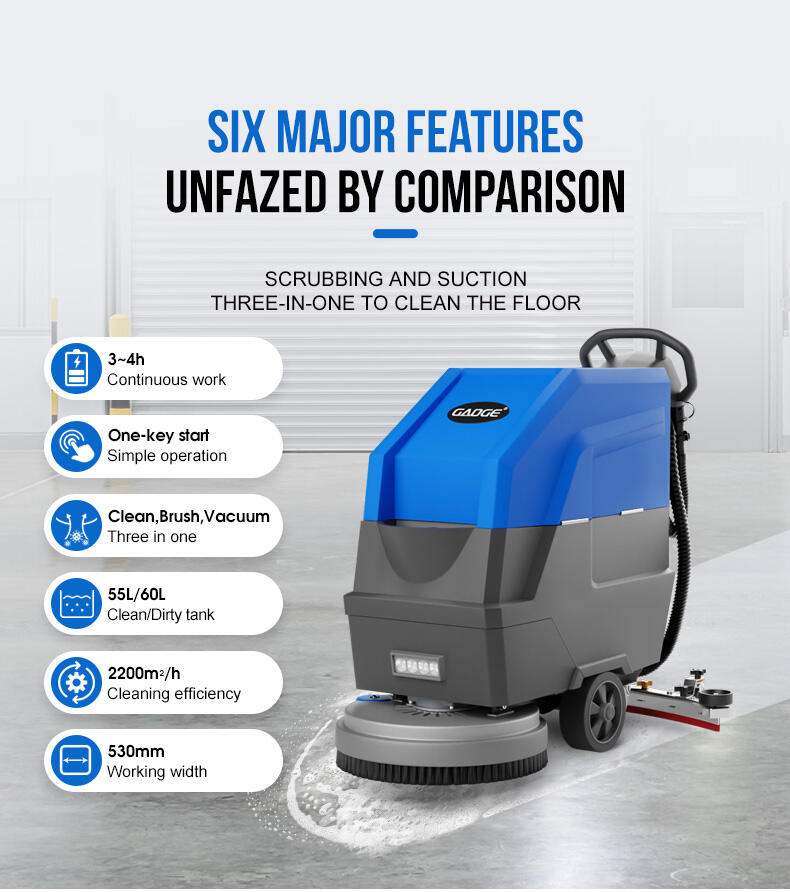

MAIN FUNCTIONS AND SPECIFICATIONS

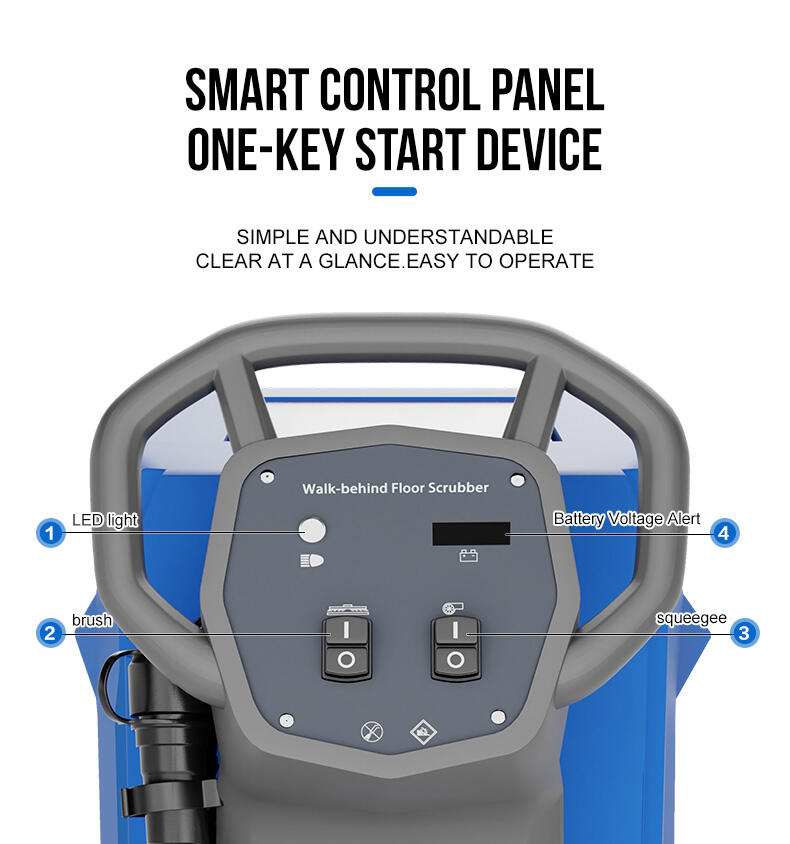

 Centralized control panel.
  Large-capacity water tank design ensures operational efficiency.

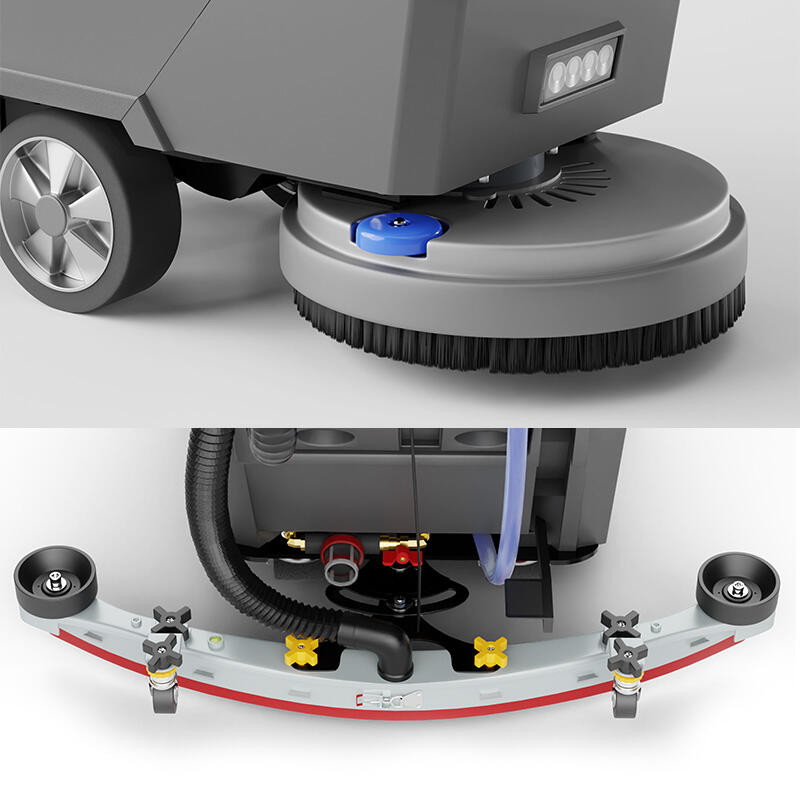

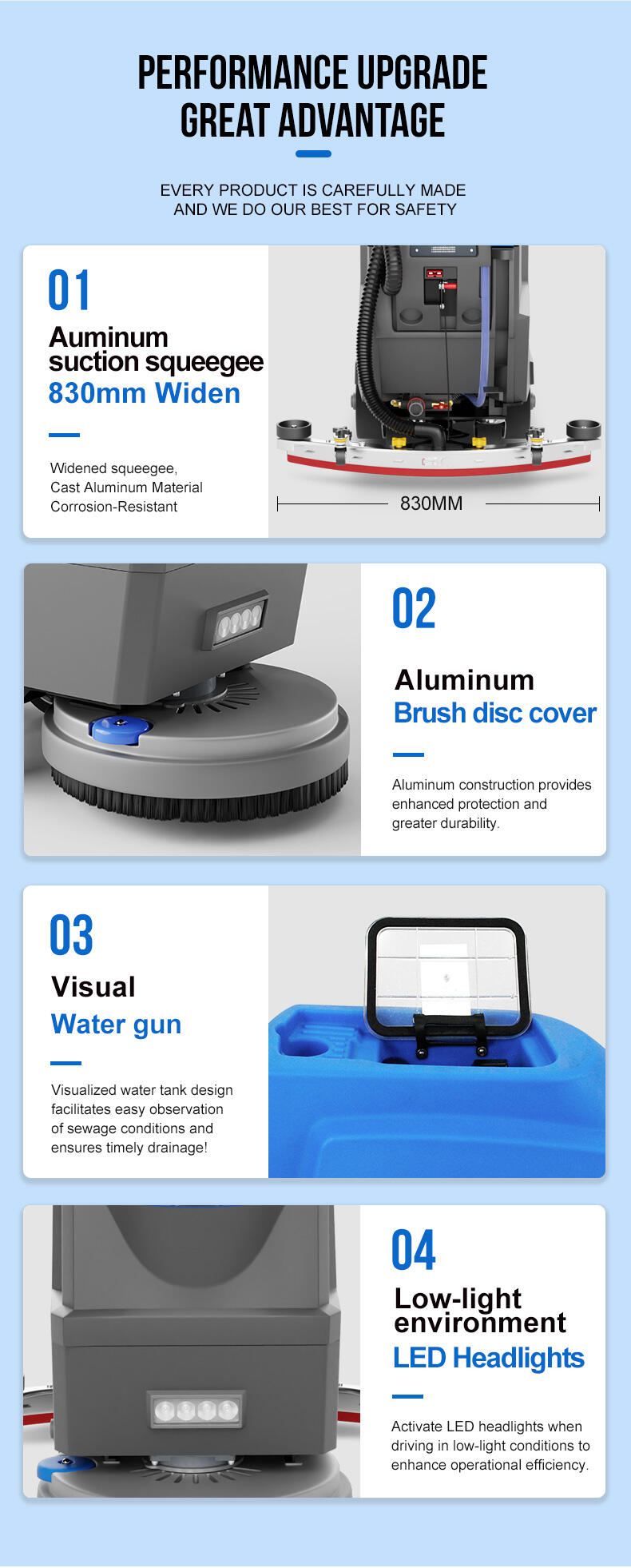

  Cast aluminum squeegee for enhanced durability, wear-resistant rubber suction head.
  Oversized brush disc doubles cleaning efficiency.
  Equipped with float valve assembly for effective fan protection.
  Features a side-swivel sewage tank design for easier battery maintenance.

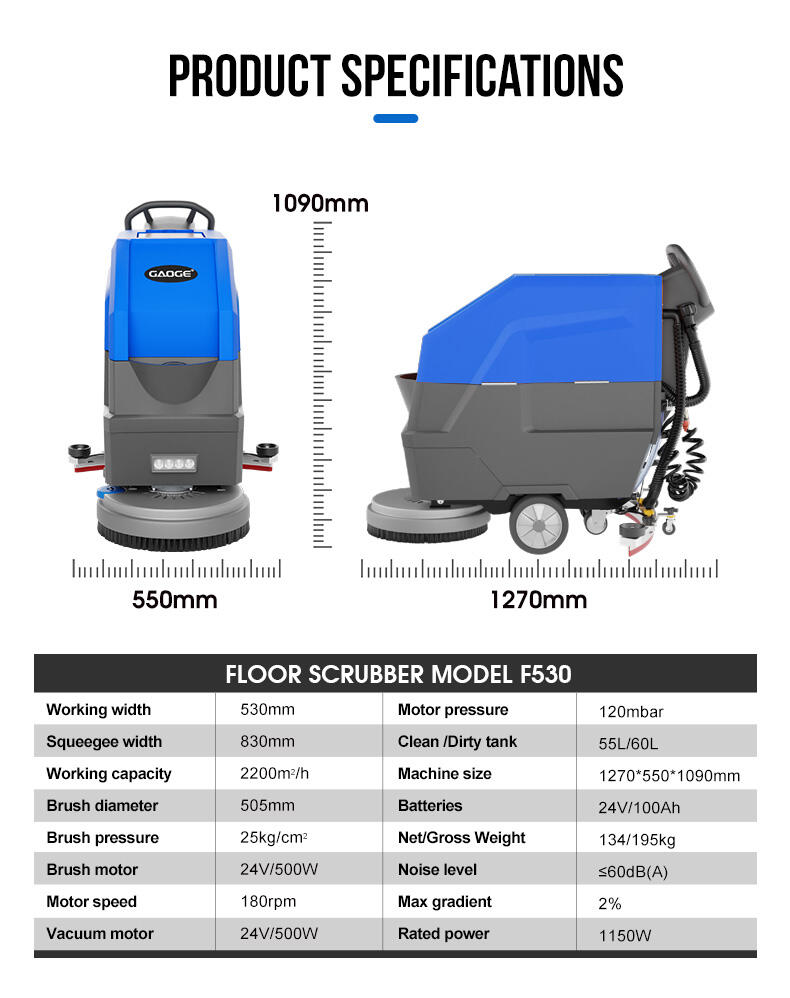

PRODUCT PARAMETERS

  • Working width: 530mm
  • Squeegee width: 830mm
  • Working capacity: 2200m²/h

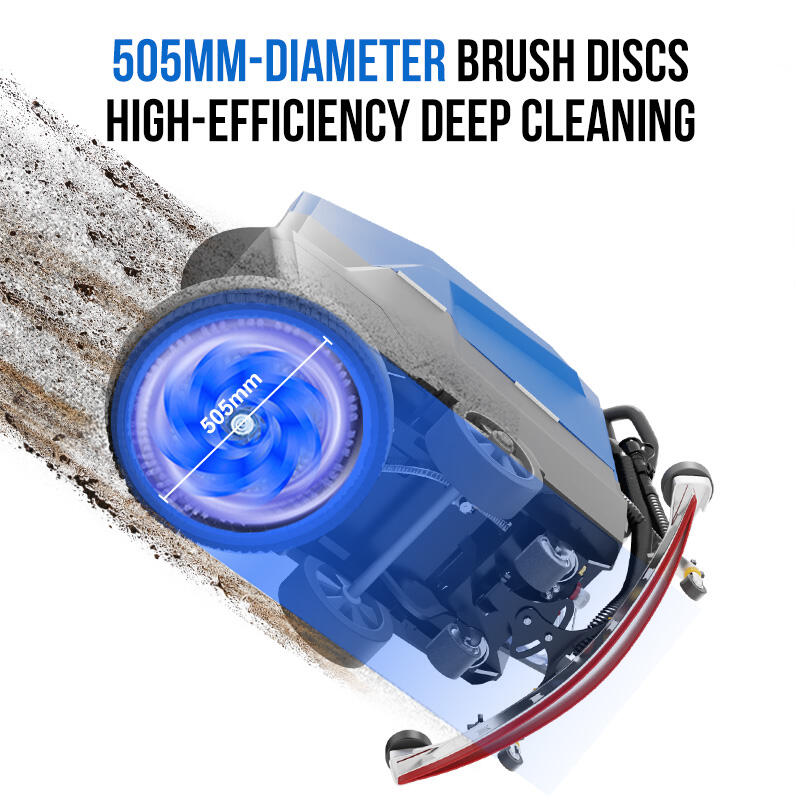

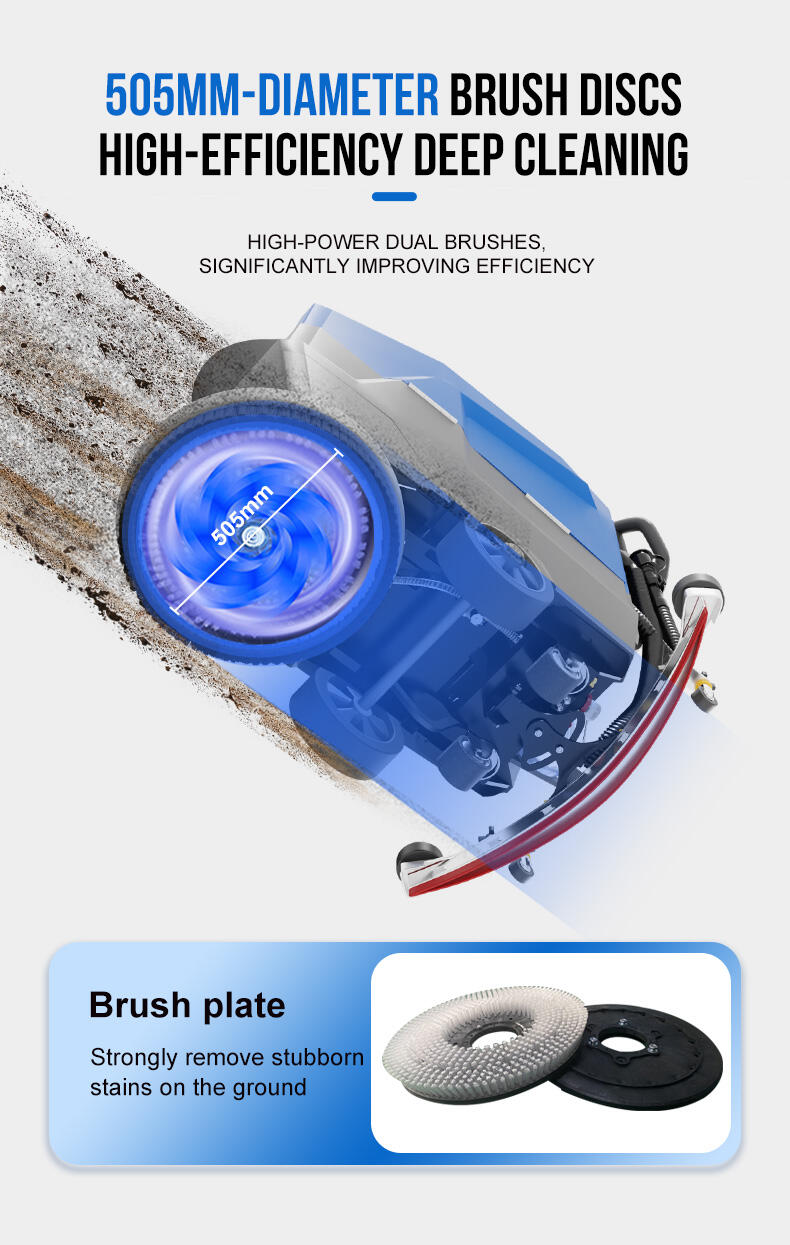

  • Brush diameter: 505mm
  • Brush motor: 24V/500W
  • Motor speed: 180rpm
  • Vacuum motor: 24V/500W
  • Motor pressure: 180mbar
  • Clean/Dirty water tank: 55L/60L
  • Batteries: 12V/100Ah*2
  • Noise level: ≤ 60dB(A)
  • Net/Gross Weight: 134/195kg
  • Brush pressure: 25kg/cm²
  • Max gradient: 2%
  • Rated power: 1150W
  • Machine size: 1270×550×1090mm
