Gaoge F530X Self-Propelled Walk-Behind Floor Scrubber | Compact & Efficient Commercial Cleaning Machine

ustomization: Supports customization

Quality Assurance: 12-month warranty

Shipping Methods: Supports various logistics options, including sea freight, land transport, and express delivery

After-sales Service: Provides technical support and spare parts supply

Standard Configuration for Each Unit Includes: one set of battery, one charger, one squeegee, one set of squeegee blades, one brush, one pad holder, and one scrubbing pad.

Important Note: Bare machine standard configuration does not include battery and charger

Brand:
Gaoge
Appurtenance:
Walk-Behind:
Parameter

If you are interested in this product, please feel free to contact us and leave your email address.Our team will get back to you within 2 business days.

MAIN FUNCTIONS AND SPECIFICATIONS

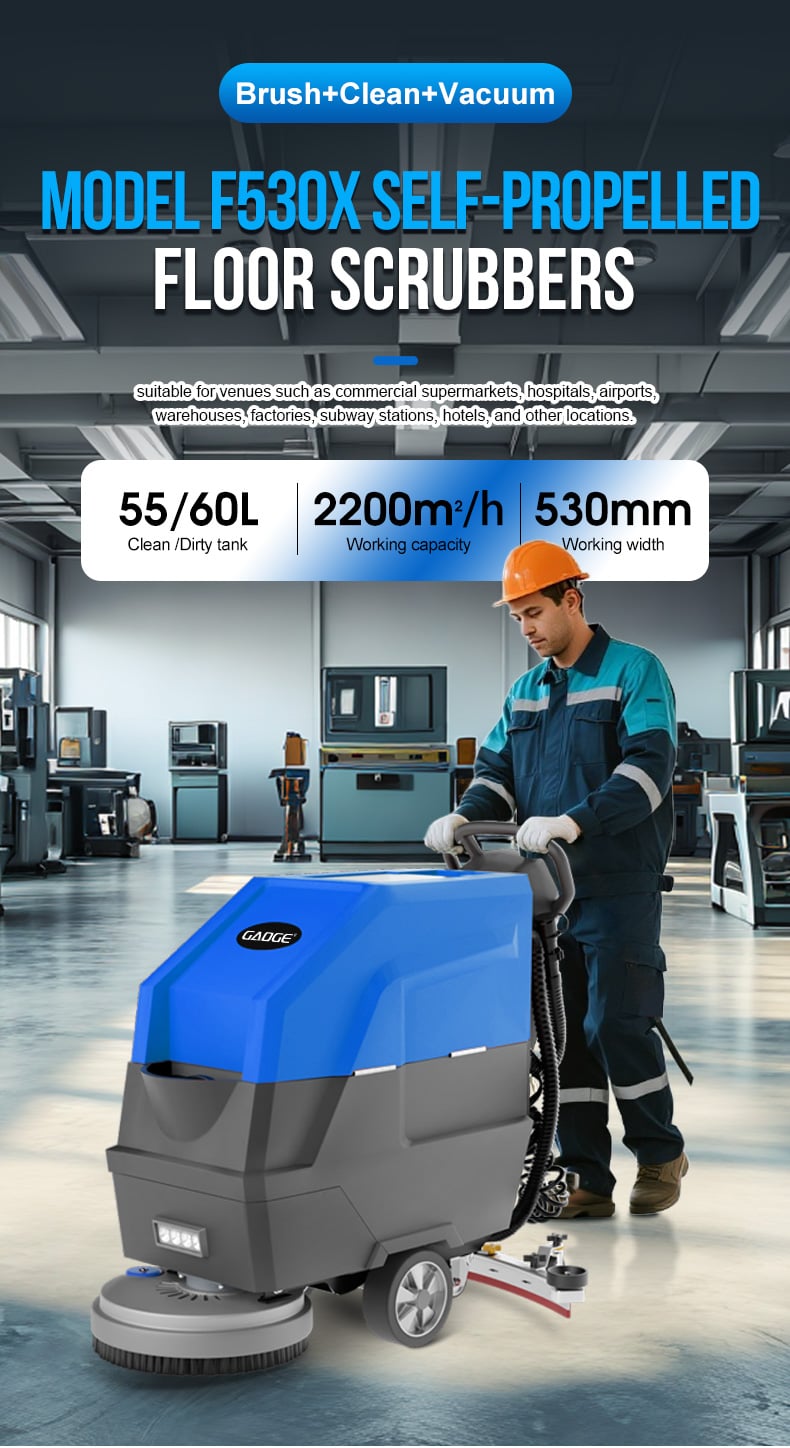

F530X Self-Propelled Walk-Behind Floor Scrubber — Smarter, Easier, More Efficient Cleaning

The F530X is an upgraded version of the F530, designed with a self-propelled drive system that makes cleaning easier and more comfortable for operators.
Equipped with a 505mm single brush rotating at 180 rpm, it provides deep, even scrubbing across multiple floor types including tile, marble, epoxy, and concrete.

With a cleaning width of 505mm and an 830mm squeegee, the F530X delivers a cleaning efficiency of 2,200㎡ per hour, making it ideal for medium-sized commercial and industrial facilities.

The 55L clean water tank and 60L recovery tank provide extended operation time, while the centralized control panel simplifies all functions for easy operation.
The handle features three self-propelled touch points, allowing users to control movement effortlessly, reducing fatigue during long cleaning sessions.

Additionally, the front-mounted LED working light ensures safe operation in dim or large indoor spaces.
Compact, reliable, and easy to maneuver, the F530X brings efficiency and comfort together for professional cleaning applications.

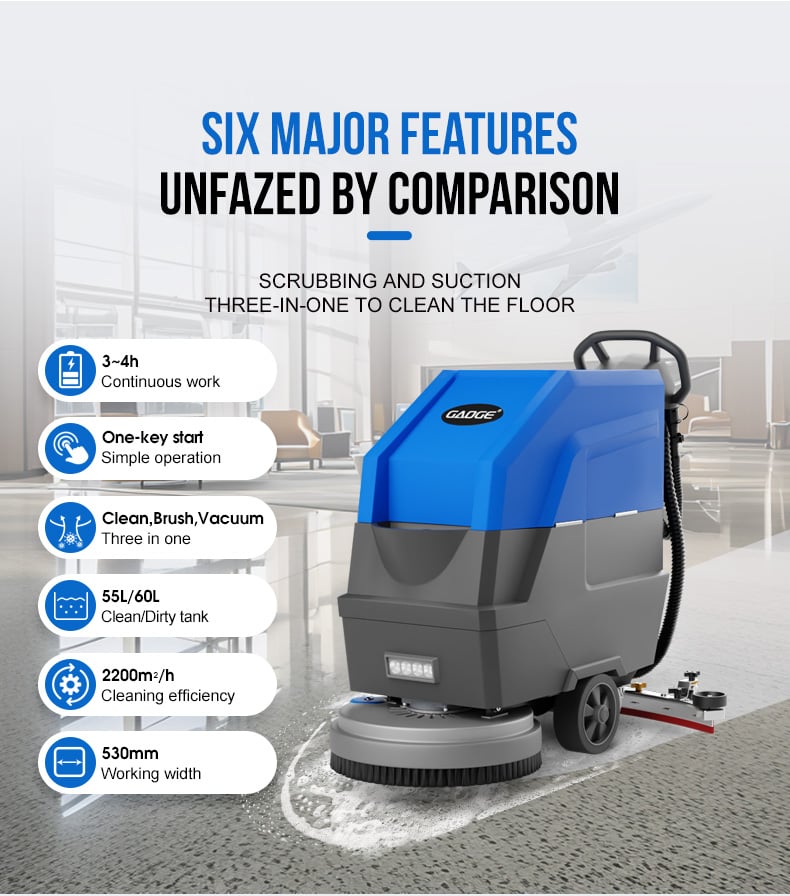

Key Features:

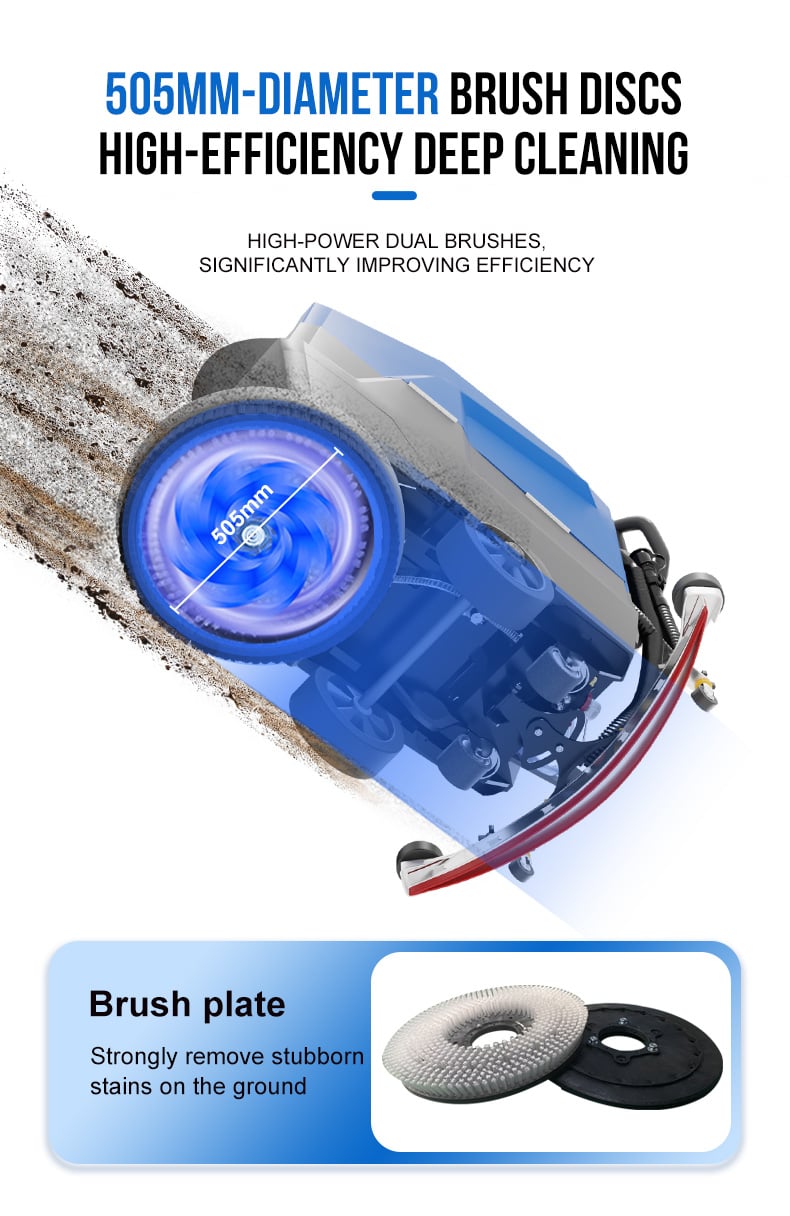

•  505 mm single brush plate – delivers strong and even cleaning power

•  180 rpm brush speed – deep scrubbing for stubborn stains

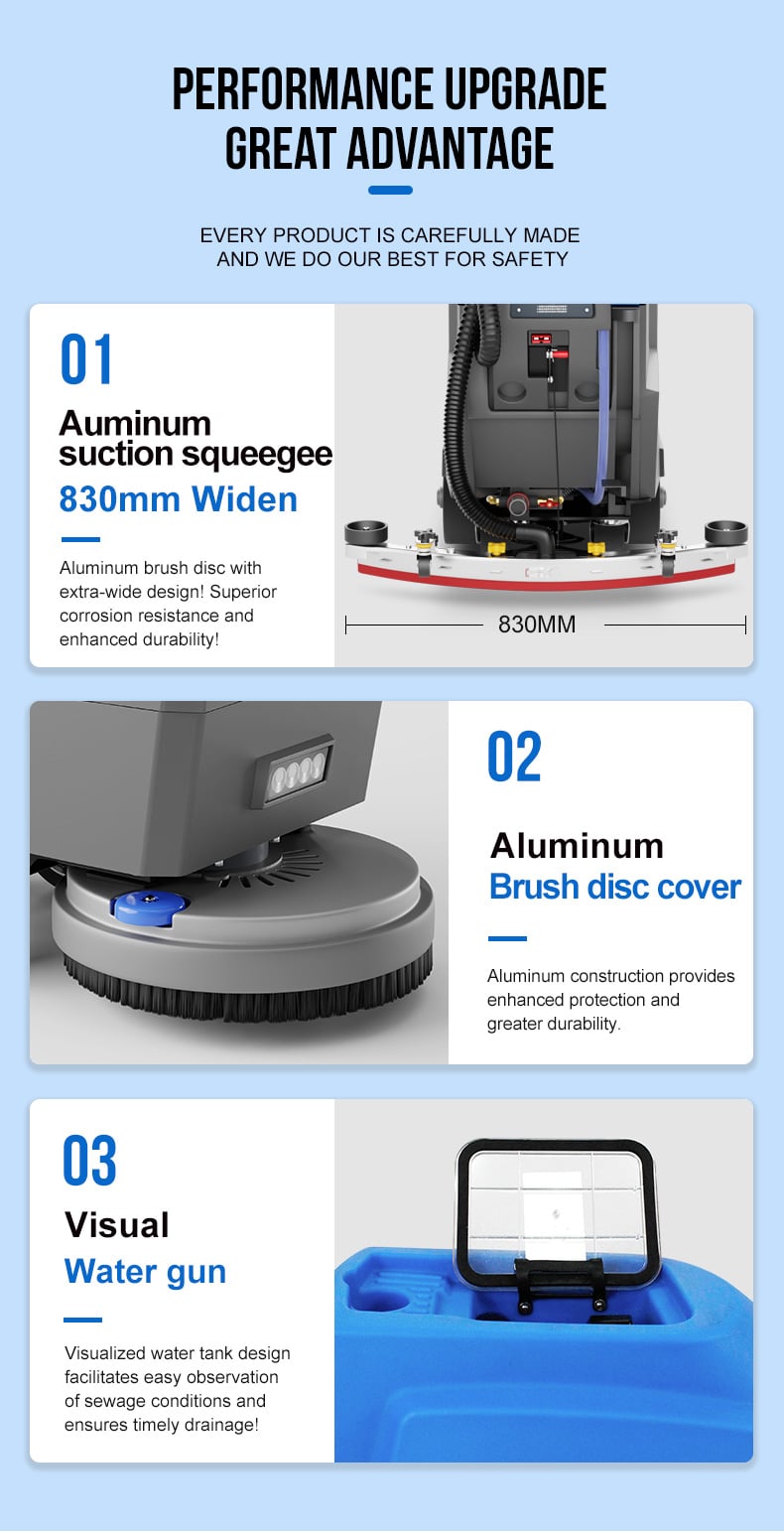

•  830 mm aluminum squeegee – wide coverage and long-lasting durability

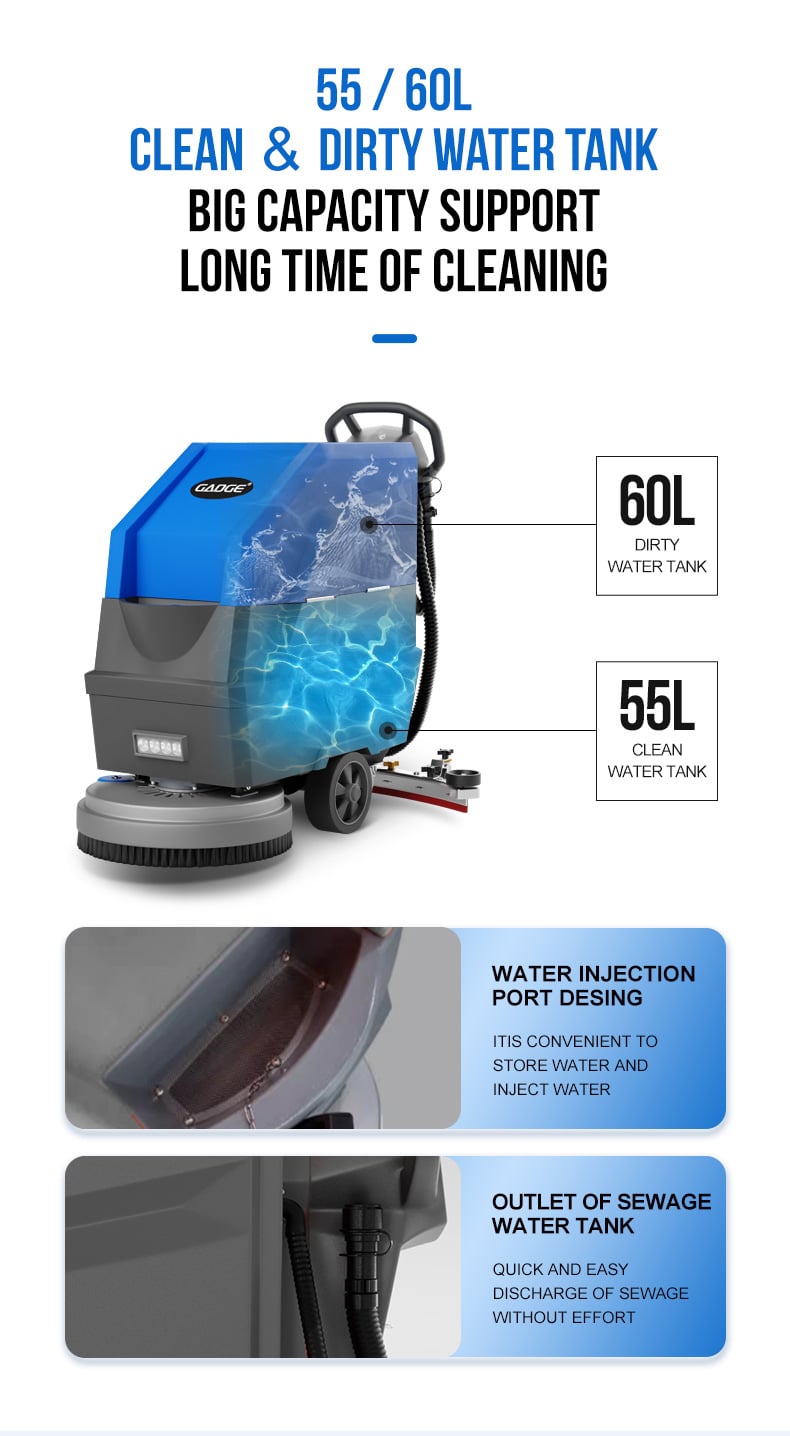

•  55L fresh water tank + 60L wastewater tank – extended working time with fewer refills

•  2915㎡/h cleaning capacity – high efficiency for commercial use

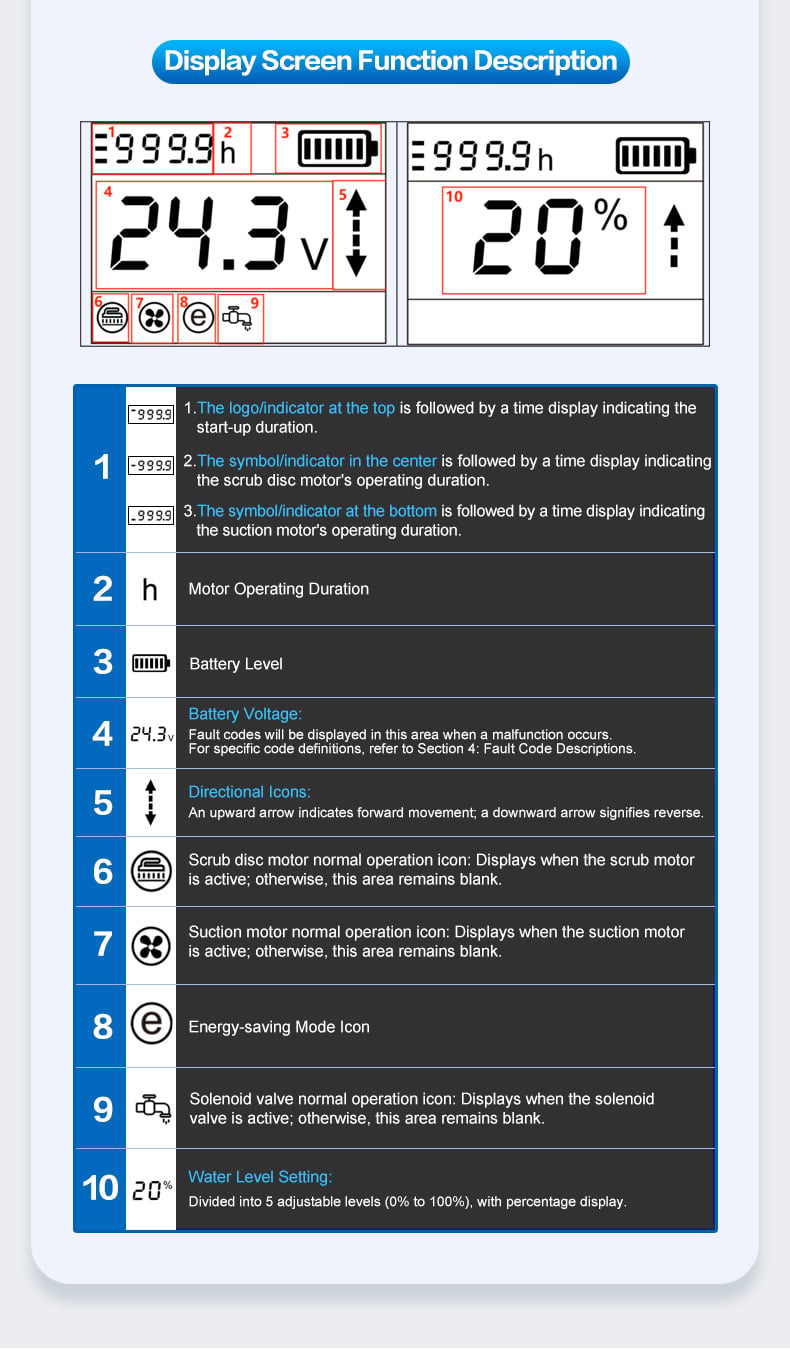

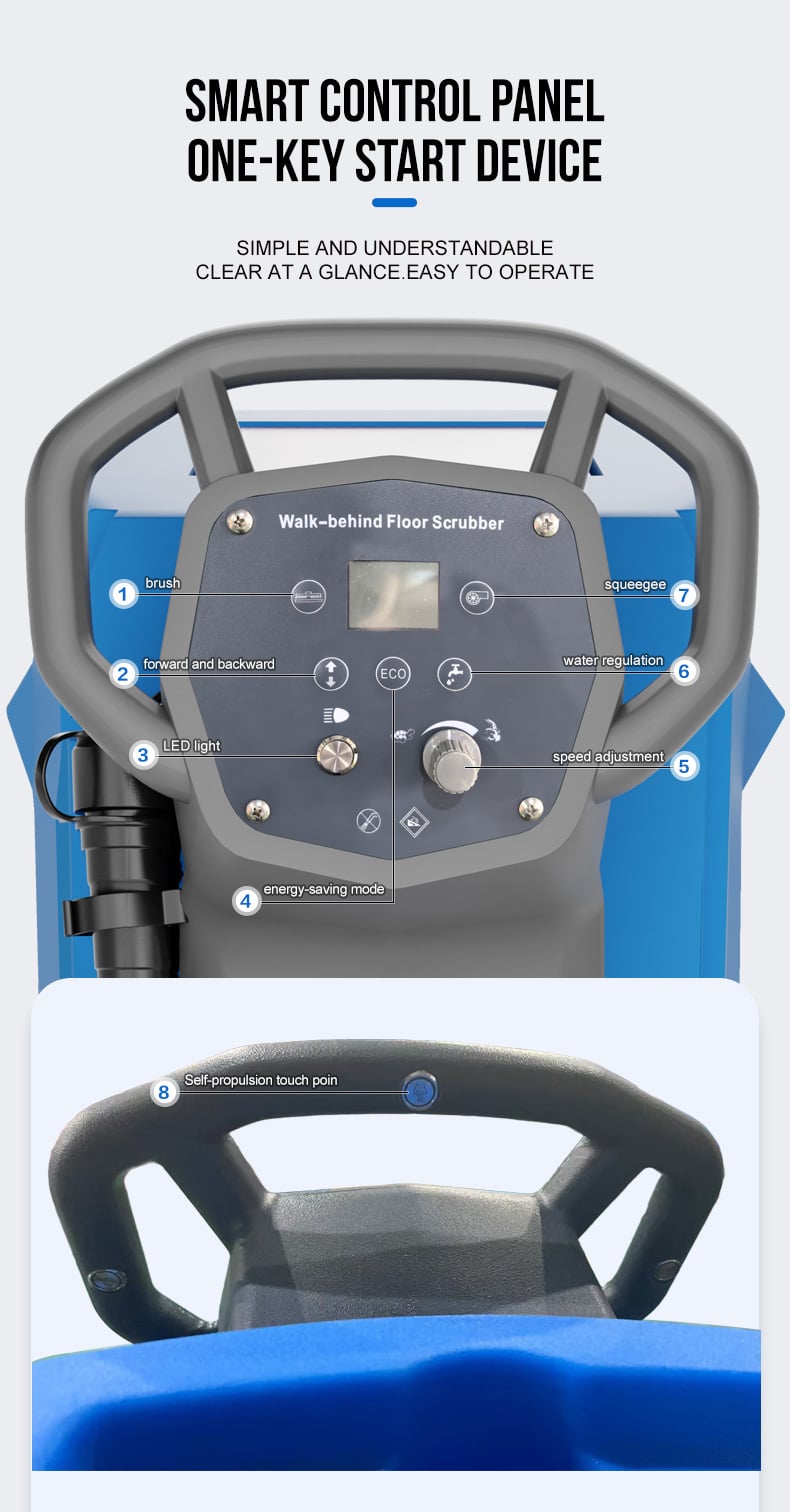

•  Centralized control panel – simple and intuitive operation

•  Built-in float valve assembly – effectively protects the vacuum motor

•  Self-propelled design – assists forward movement and greatly reduces operator fatigue

•  Tilting wastewater tank design – makes battery maintenance easier

APPLICATION SCENARIOS

The F530X Self-Propelled Floor Scrubber is perfect for a wide range of commercial and industrial environments:

  • 🏬 Shopping Malls & Supermarkets – keep high-traffic areas spotless and safe

  • 🏭 Factories & Workshops – remove dust, oil, and stains from production floors

  • 🚚 Warehouses & Logistics Centers – maintain large spaces with high efficiency

  • 🏢 Office Buildings – ensure clean and professional work environments

  • 🏨 Hotels & Hospitals – meet strict hygiene standards with ease

  • 🚇 Public Facilities – ideal for schools, airports, stations, and parking areas

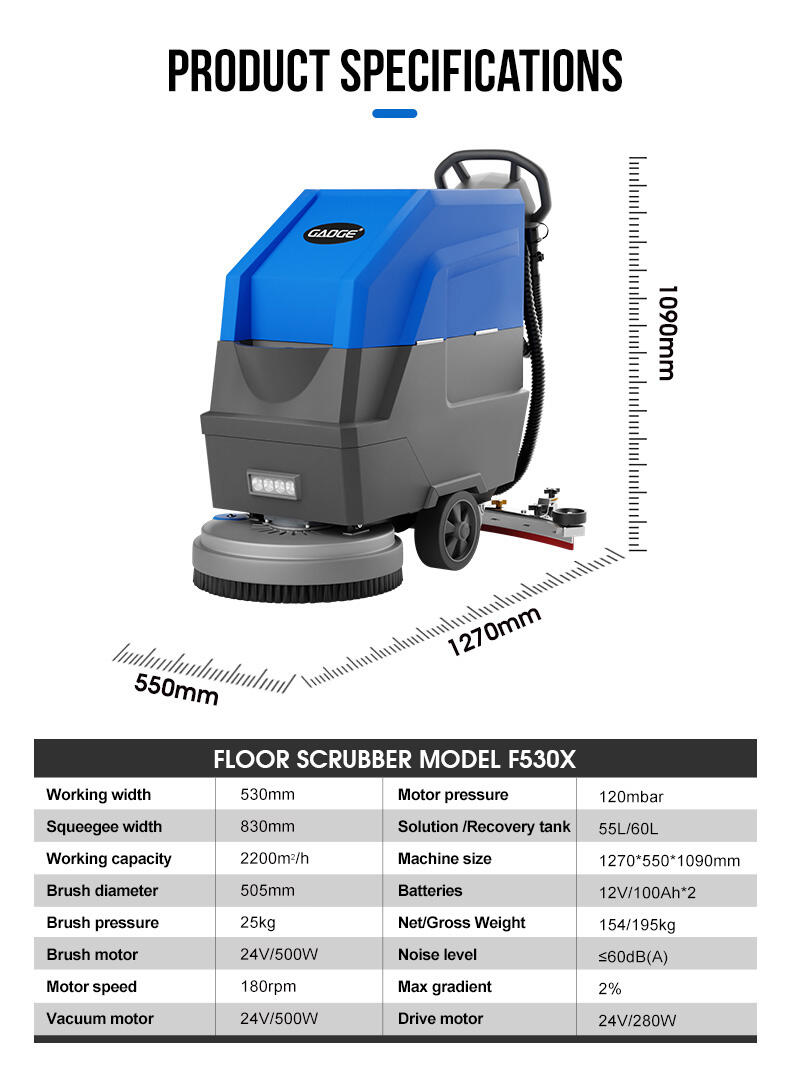

PRODUCT PARAMETERS

  • Working width: 530mm
  • Squeegee width: 830mm
  • Working capacity: 2200m²/h
  • Brush diameter: 505mm
  • Brush motor: 24V/500W
  • Motor speed: 180rpm
  • Vacuum motor: 24V/500W
  • Motor pressure: 120mbar
  • Clean/Dirty water tank: 55L/60L
  • Batteries: 12V/100Ah*2
  • Noise level: ≤ 60dB(A)
  • Net/Gross Weight: 154/195kg
  • Brush pressure: 25kg/cm²
  • Max gradient: 2%
  • Drive motor: 24V/280W
  • Machine size: 1270×550×1090mm

自走款1.jpg自走款1_02.jpg自走款1_03.jpg自走款1_04.jpg自走款2_01.jpg自走款2_02.jpg自走款2_03.jpg自走款2_04.jpg自走款2_05.jpg自走款2_06.jpg

About Us


GAOGE is a professional manufacturer of commercial floor scrubbers based in ZhangjiagangSuzhou, China. With 10+ years of experience, a 3,500m factory, and an in-house R&D team.we offer a complete range of walk-behind and ride-on scrubbers with cleaning widths from350mm to 1100mm.

We deliver factory-direct solutions with no middlemen, offering exceptional cost-performanceand faster lead times, Our machines are widely used in factories, supermarkets, parking lots.and other large venues.

GAOGE supports OEM/ODM customization, ensures full spare parts availability, and providesresponsive global after-sales service. We are committed to helping partners grow with reliablehigh-value products tailored to their market.

公司介绍_02_02 .jpg客户.jpg展会.jpg

FAQ

Q1: What types of floors can your floor sweeper clean?
✅ Our machines are suitable for tile, concrete, epoxy, marble, vinyl, and more. They work well in commercial and industrial environments.

Q2: What kinds of batteries can we choose?
✅ Our standard configuration uses a lead-acid battery, but it can also be equipped with a lithium battery upon customer request.

Q3: How long does the battery last?
✅ Our battery-powered sweepers can operate for 3–5 hours on a single charge, depending on the model and usage conditions.

Q4: Do you provide spare parts and after-sales service?
✅ Yes! We offer spare parts, online technical support, and a 1-year warranty.

Q5: Can I order a sample before bulk purchasing?
✅ Yes, we support sample orders. Please contact us for more details.

Q6: Do you offer OEM/ODM services?
✅ Absolutely! We can customize logos, colors, and product designs based on your business needs.

Q7: What is the delivery time?
✅ For standard orders: 7–15 days. For customized orders: 20–30 days.

Q8: What payment methods do you accept?
✅ We accept T/T, PayPal, Western Union, L/C, and other common payment options.
